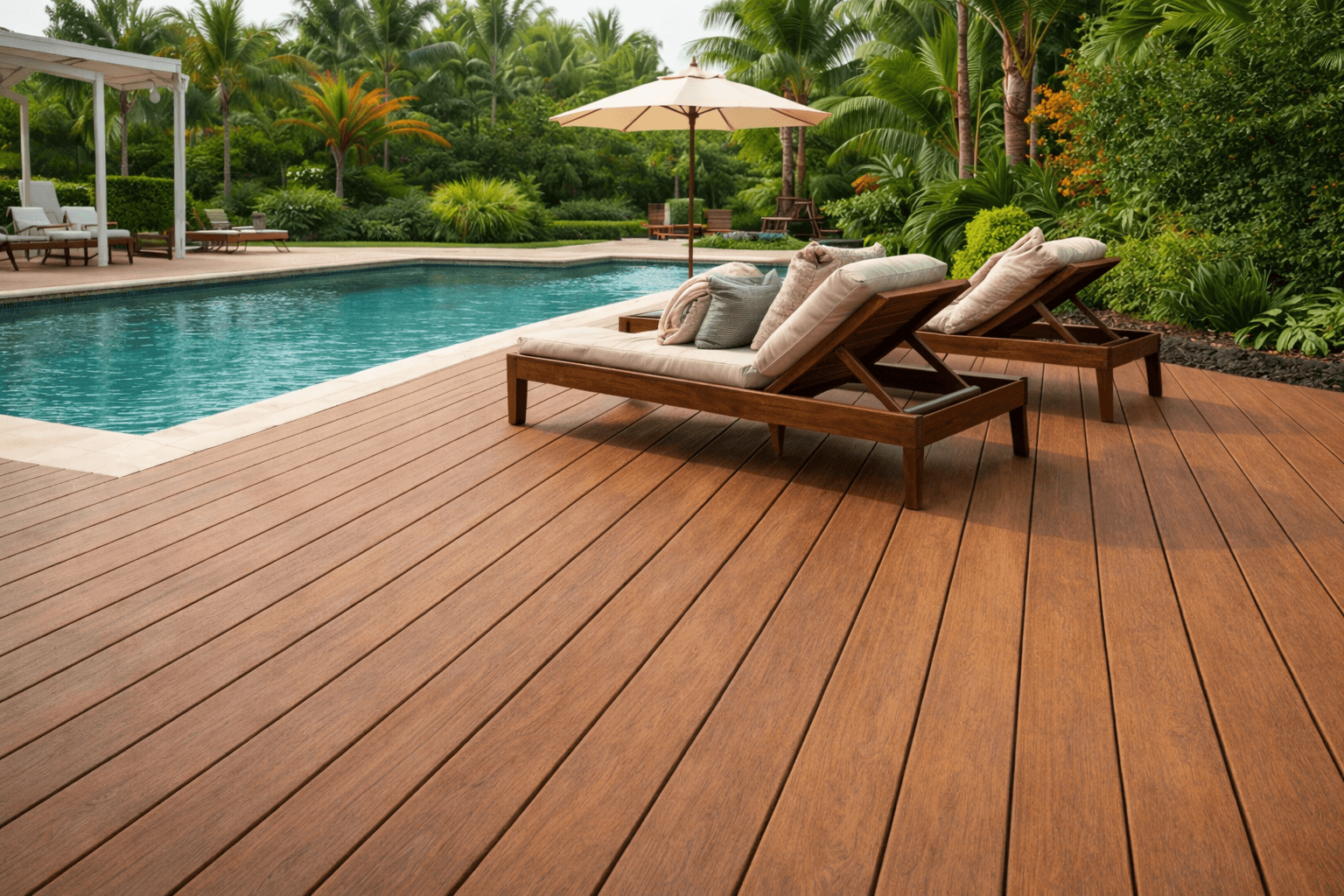

Two cushioned wooden lounge chairs sit on a spacious wooden deck beside a swimming pool, surrounded by lush tropical plants and palm trees. An umbrella provides shade in the background.

Advanced Manufacturing for Exterior Durability

Composite decking has evolved significantly with the development of co-extrusion technology, a manufacturing method that bonds multiple material layers into a single structural profile. Unlike early wood-plastic composite boards that consisted of a homogeneous mixture, co-extruded boards feature a protective outer shell fused to a composite core. This layered structure enhances durability, moisture resistance, and surface stability, allowing decking systems to perform reliably in demanding exterior environments.¹

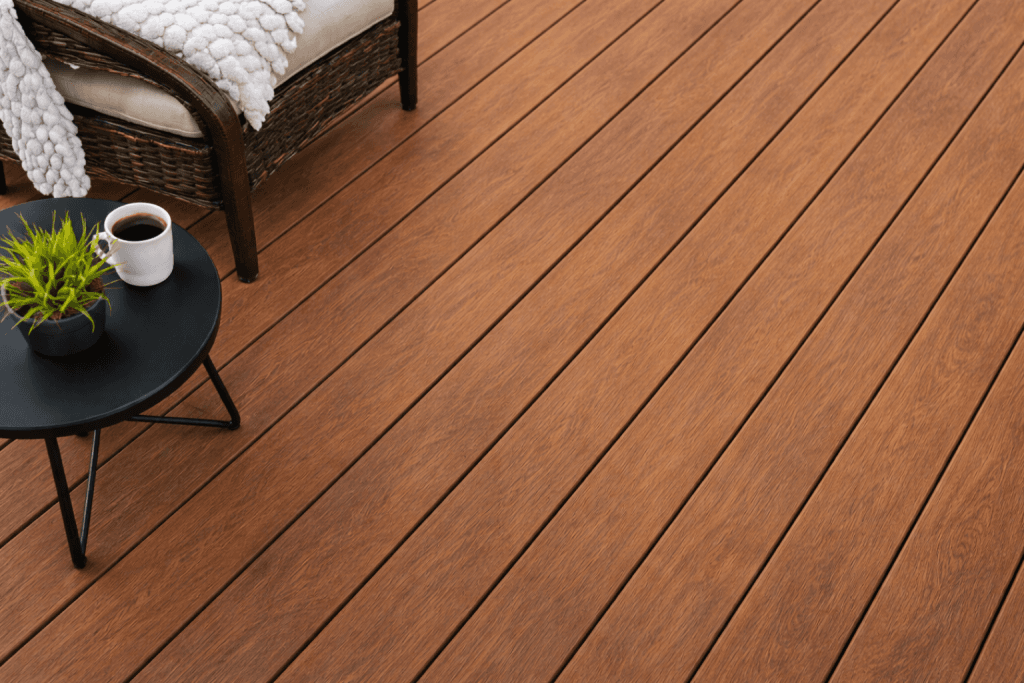

A cozy outdoor space with brown wood decking, a wicker chair with a beige cushion and white throw blanket, and a small black round table holding a green potted plant and a cup of coffee.

Principles of Co-Extrusion Manufacturing

Layered Material Formation

Co-extrusion involves simultaneously extruding two or more materials through a single die to create a unified profile. In composite decking, the inner core typically consists of wood fibre and thermoplastic polymers, while the outer cap is a polymer-rich layer engineered for weather resistance.² The bonding occurs while both materials remain in a molten state, ensuring molecular adhesion rather than mechanical attachment.

Core Composition and Structural Performance

The inner core provides mechanical strength and dimensional stability. Wood fibres improve stiffness and reduce thermal expansion, while polymers enhance moisture resistance. ASTM D7032 establishes performance criteria for composite deck boards, including flexural strength and creep resistance under load.³ These standards enable manufacturers to validate structural integrity and ensure consistent product performance.

Protective Cap Layer Technology

The outer shell of a co-extruded board functions as a protective barrier against ultraviolet radiation, staining, and abrasion. This cap layer often contains pigments, stabilisers, and UV inhibitors that preserve colour and surface finish. Research on polymer weathering demonstrates that protective coatings significantly slow degradation caused by solar exposure and environmental stress.⁴

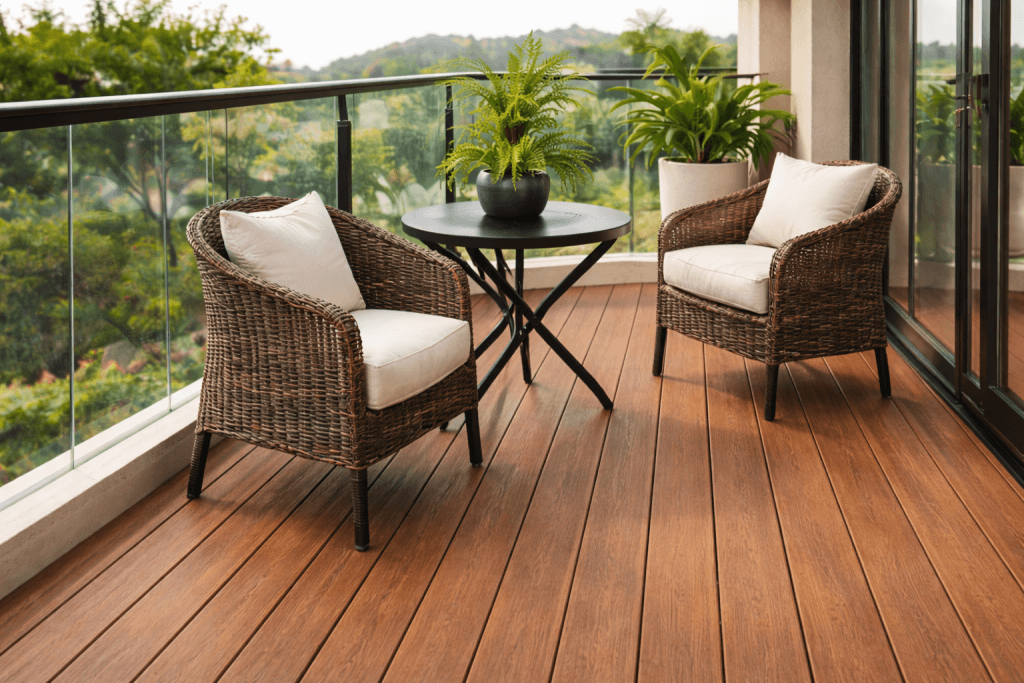

A cozy balcony with two wicker chairs with white cushions, a small round black table holding a potted fern, and green plants in the corner. The balcony has glass railings and overlooks trees.

Performance Advantages in Exterior Applications

Co-extruded decking systems demonstrate enhanced resistance to environmental stressors compared with uncapped composites. The sealed outer layer limits water absorption and reduces the risk of swelling or surface cracking. In climates with heavy rainfall or strong sunlight, this protective shell helps maintain structural integrity and aesthetic appearance over extended service periods. Improved stain resistance also simplifies maintenance requirements in residential and commercial outdoor spaces.

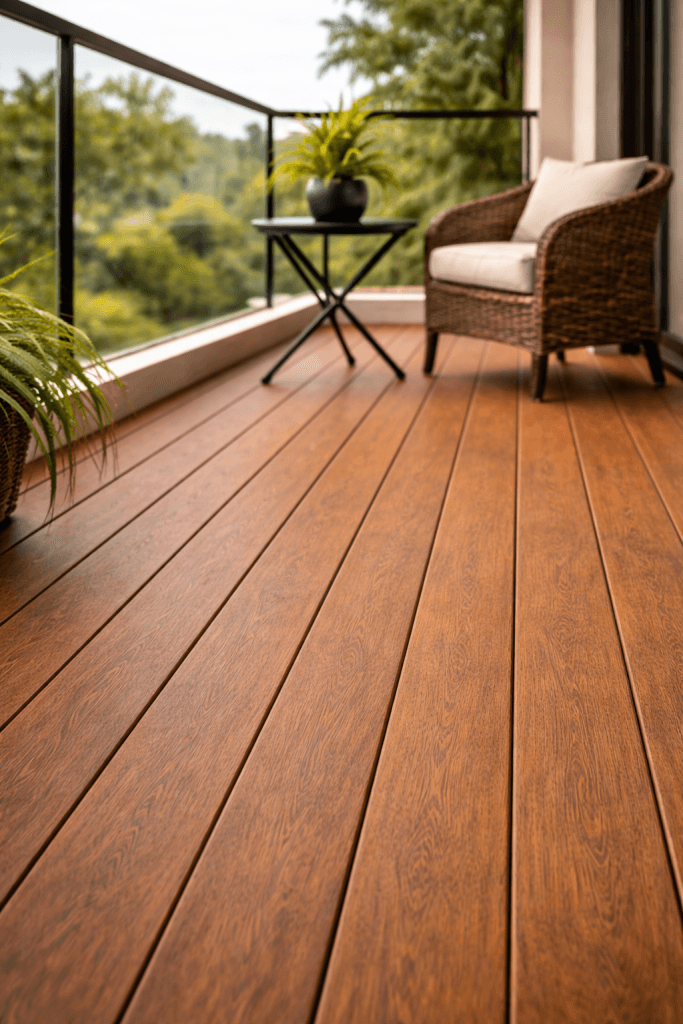

A cozy balcony with wooden flooring, a wicker chair with a cushion, a round black table holding a potted plant, and greenery visible in the background.

Material Engineering and Durability Factors

Resistance to Moisture and Biological Growth

Moisture infiltration is a primary cause of deterioration in traditional wood decking. The co-extruded cap layer creates a hydrophobic barrier that reduces water penetration and inhibits mould or mildew growth. This feature is particularly valuable in humid or coastal environments where exposure to salt air and rainfall accelerates degradation in untreated materials.

Surface Wear and Abrasion Protection

The outer polymer shell also improves abrasion resistance, protecting the underlying composite core from mechanical damage. Foot traffic, furniture movement, and airborne debris can gradually wear exposed surfaces. A durable cap layer distributes mechanical stress across the board surface, preserving structural stability and visual consistency over time.

Environmental and Sustainability Considerations

Recycled Content Integration

Many co-extruded decking systems incorporate recycled plastics and reclaimed wood fibres within the core layer. This approach reduces demand for virgin raw materials and diverts waste from landfills. Environmental Product Declarations developed according to ISO 14025 provide verified data on recycled content and lifecycle environmental impacts.⁵ Transparent reporting strengthens environmental accountability and supports sustainable material selection.

Lifecycle Performance and Longevity

Durability is a key sustainability factor because long-lasting materials reduce replacement frequency and associated resource consumption. Lifecycle assessment methodologies outlined in ISO 14040 evaluate environmental impacts across production, transportation, installation, and end-of-life phases.⁶ Co-extruded decking’s extended service life can offset manufacturing impacts, especially when compared with untreated timber requiring frequent maintenance or replacement.

Specification Considerations for Designers

Climate and Exposure Conditions

Material selection should consider climatic factors such as solar intensity, rainfall, and temperature fluctuations. In regions with high UV exposure, capped composites with enhanced stabiliser content may provide superior colour retention. Conversely, in cooler climates, thermal expansion properties become a primary consideration for installation spacing and structural detailing.

Installation and Maintenance Compatibility

Although co-extruded boards are designed for durability, installation practices still influence long-term performance. Proper joist spacing, drainage allowance, and fastening systems ensure adequate ventilation and load distribution. Manufacturers often provide technical guidelines aligned with ASTM performance standards to support correct installation and maintenance procedures.³

Two cushioned wooden lounge chairs sit on a spacious wooden deck beside a swimming pool, surrounded by lush tropical plants and palm trees. An umbrella provides shade in the background.

Engineering Innovation in Modern Decking Materials

Co-extrusion technology represents a major advancement in the evolution of composite decking, transforming traditional wood-plastic formulations into high-performance multilayer systems. By integrating a structurally robust core with a protective outer shell, manufacturers achieve a balance between mechanical strength and environmental resistance that would be difficult to obtain from a single-material profile. This layered design enhances resistance to ultraviolet radiation, moisture, biological growth, and mechanical abrasion, extending service life and reducing maintenance requirements. Standardised testing frameworks such as ASTM D7032 provide objective validation of structural performance, while lifecycle assessment methodologies quantify environmental impacts across production and use phases. The ability to incorporate recycled content further strengthens sustainability credentials, aligning co-extruded decking with circular economy principles. As outdoor environments demand materials capable of withstanding increasingly variable climatic conditions, co-extrusion technology enables composite decking to meet both performance and environmental expectations. Through continued refinement of polymer chemistry and manufacturing precision, co-extruded systems are likely to define the next generation of resilient exterior surfacing solutions.

References

  1. ASTM International. (2017). ASTM D7032: Standard Specification for Establishing Performance Ratings for Wood-Plastic Composite Deck Boards and Guardrail Systems. ASTM International.

  2. International Organization for Standardization. (2006). ISO 14025: Environmental Labels and Declarations — Type III Environmental Declarations. ISO.

  3. International Organization for Standardization. (2006). ISO 14040: Environmental Management — Life Cycle Assessment — Principles and Framework. ISO.

  4. PlasticsEurope. (2018). The Compelling Facts About Plastics 2018. PlasticsEurope.

  5. U.S. Department of Agriculture, Forest Products Laboratory. (2010). Wood Handbook: Wood as an Engineering Material. USDA Forest Service.
